Description:
Input Voltage : AC 100 - 240V
Balanced charge current: 850mA
Maximum charge current: 3 × 800mA
Display: 3-color LED indicates the charger
Size: 90mm × 55mm × 34mm

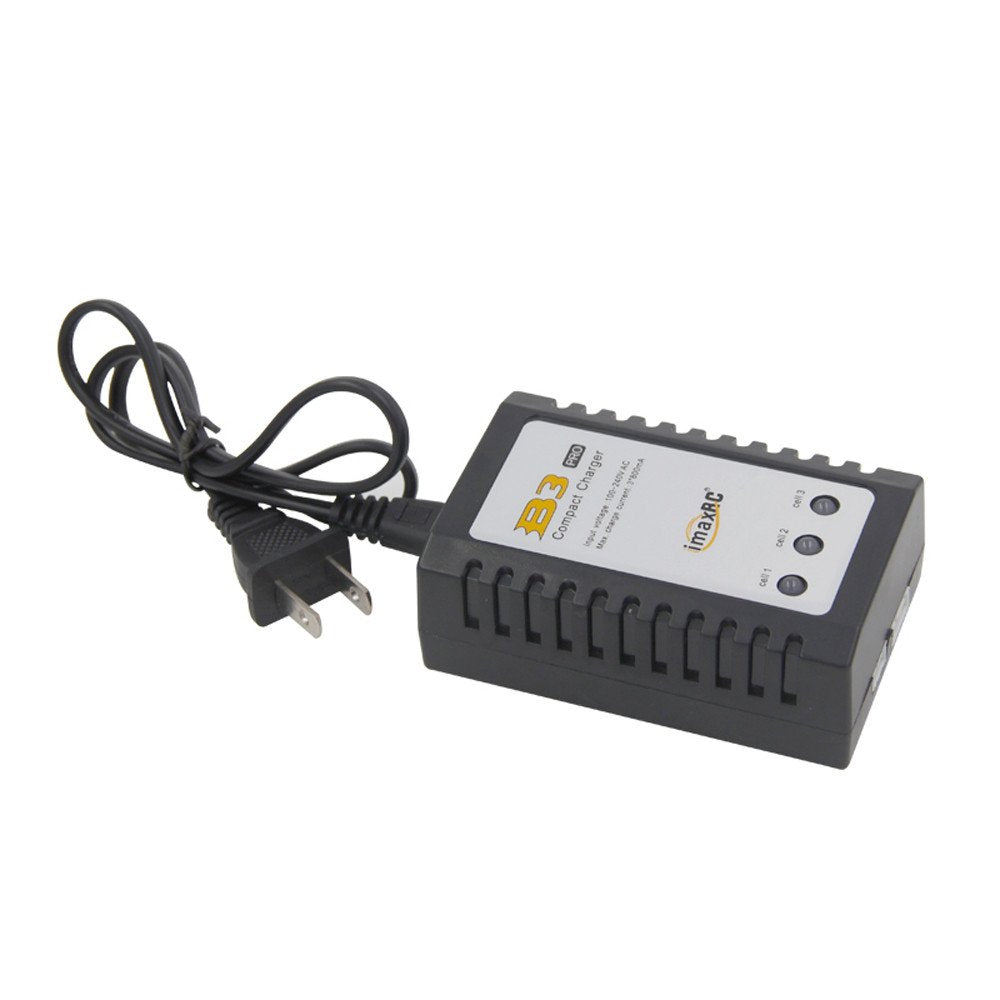

B3 Pro LiPO Smart Charger User Manual download HERE
Led Indicator:
When power is on : Orange
Stand by mode : Green
Battery Charging : Red
Battery Full : Green
Package included:

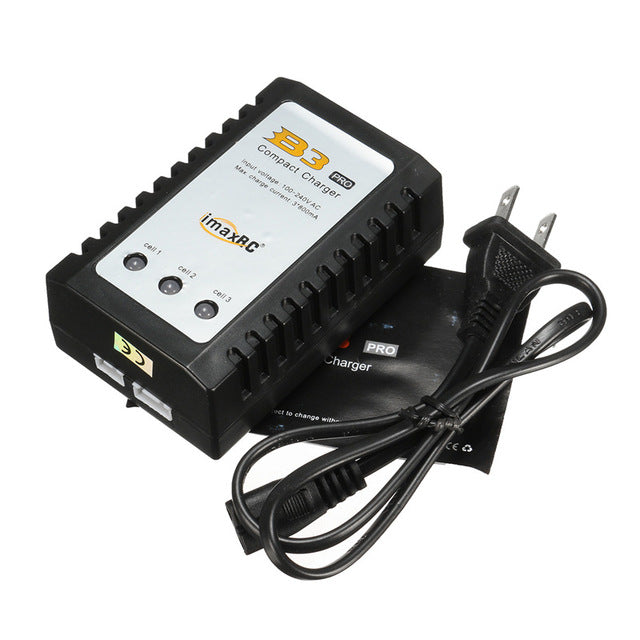

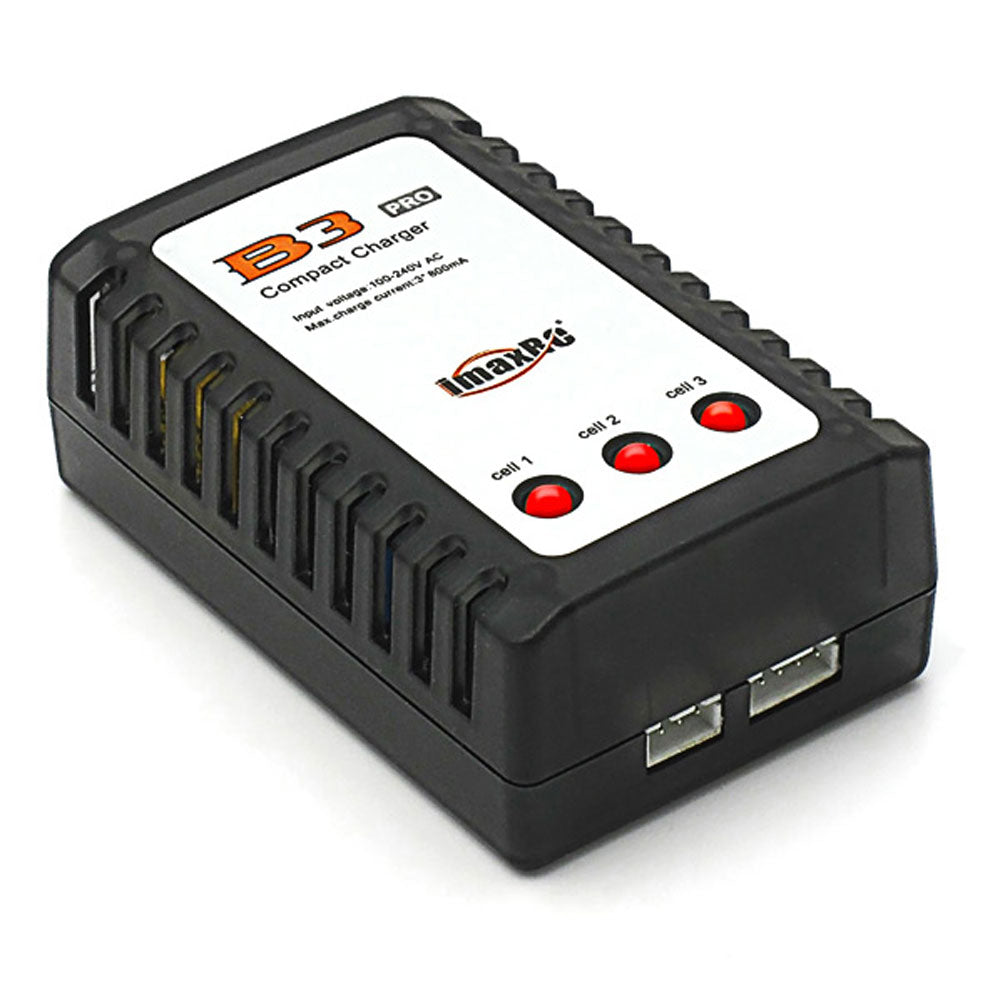

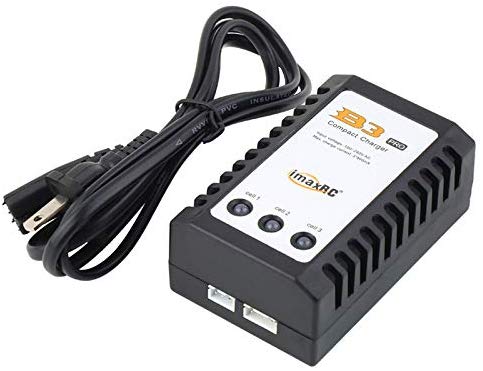

1 X iMax B3 Charger

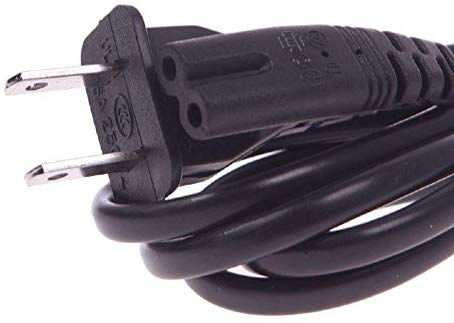

1 X US Power Cord
- The charger is designed for indoor use only. Do not leave the charger unattended during charging.
- The Charger should be positioned horizontally and work in well ventilated condition, avoid water and keep away from flammable explosive goods.
- Don't cover the charger when charging, ambient temperature shall not be more than 30oC
- Do not leave batteries charging on flammable surfaces, wood surface or carpet.
- Don't try to disassemble the charger, High voltage inside!
- Never leave the battery pack charging unattended. Especially do not connect it to the charger for the whole night!
- Avoid short-circuits and mechanical damage to the battery.
- Mechanical damage or improper battery charging may lead to the fire hazard
